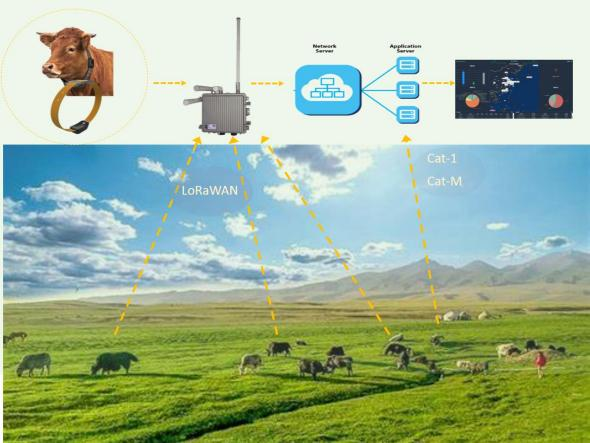

Livestock Tracking
Husbandry
Cow/sheep/camel location
Step counting
Temperature and humidity monitoring
FEATURES
LoRaWAN: Global band-plan, CN470/EU868/US915/AS923 …
RF TX power up to 21dBm, Sensitivity down to -138dBm@SF12/125KHz
Temperature with ±0.3℃ measurement tolerance and Humidity with ±3%RH tolerance GPS position tolerance: ±10m
Bluetooth position tolerance: ±3m （work with Bluetooth beacon）
Support accumulated Step counting information of each day
Enhanced dual-LED, more friendly user indication interface
Field testing mode to evaluate Network quality
Support LoRaWAN packet re-transmission if lost(need configured)
Support Relay function to forward the LoRaWAN class A message of slave node(need
configured)
IP67 protection
Operation range; -40~85℃
Bluetooth APP to enable device management and control and Upgrade over the air.
Optimized power consumption, typical for 5 year battery life.
Low battery level alarm, Battery is capable to change, ER34615 size.
Besides LoRaWAN, there is also Cat-1/Cat-M version for customer’s choice.
ORDERING INFORMATION
Model | Description |
NL101C-470 | LoRaWAN Livestock Tracker NL101C, 470MHz |
NL101G-868 | LoRaWAN Livestock Tracker NL101G, 868MHz |
NL101G-915 | LoRaWAN Livestock Tracker NL101G, 915MHz |
NL101G-Cat1 | Livestock Tracker NL101G, Cat-1 version |
NL101G-CatM | Livestock Tracker NL101G, Cat-M version |
