Product Description

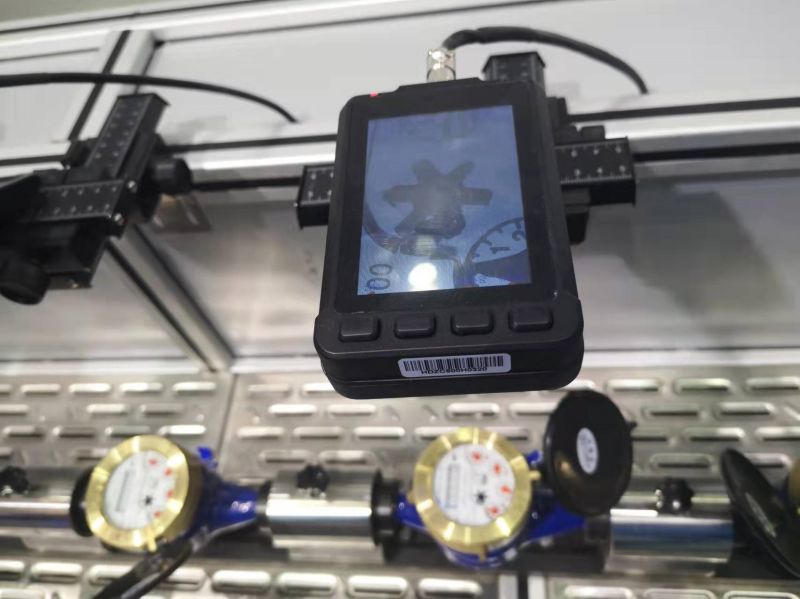

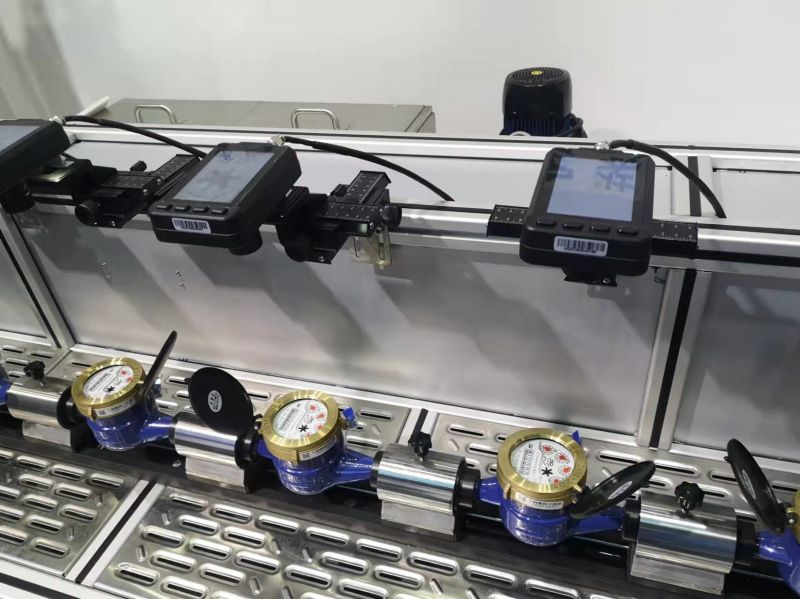

Camera + PC automatic reading, easy to operate
Automatic calculation error.
Computer printing test report.
High testing efficiency, testing 1000pcs water meters in 8 hours
High-accuracy weighing instrument
Barcode gun input meter number, fast and accurate
Equipped with water circulation system
Built in automatic pressure and water meter vacuum function.
Automatically store data to achieve unified production management
Technical Specifications
Dimension: | 470 x 1200x2200 mm (LxWxH) |
Power supply: | 380V/220V |
Equipment power: | 3KW |
Supply air pressure: | >0.5 MPa |
Quantity: | DN15 10 pcs DN20 10 pcs DN25 6 pcs |
Test method: | Weighing method |
Equipment error: | 0.2% (K=2) |
Concentricity | <1mm |
Test time | 5-8 mins |
Material | Aluminum profiles and 304 stainless steel |
