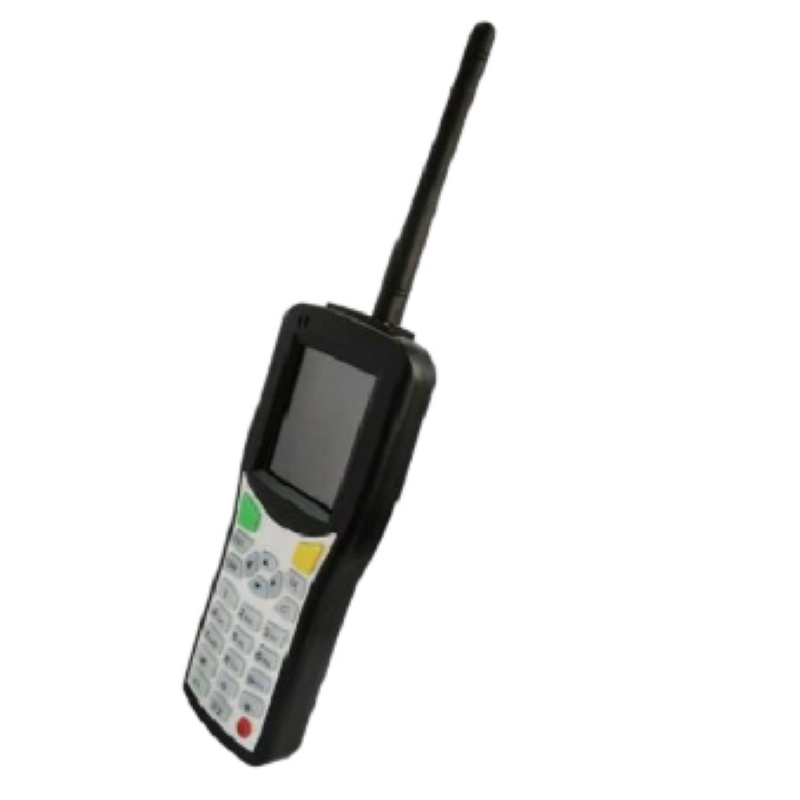

LoRaWAN Handheld Field Tester

RHF4T003 is a Handheld Field Tester support LoRa® and LoRaWAN®, it integrates GPS, Temperature/Humidity sensor and Full LoRaWAN® protocol compliant. It is a portable device equipped with a 1150mAh rechargeable battery and 2.4” Size LCD display, The LCD displays the Device working status, real time testing data, signal quality, Locations, These data is stored in the TF memory card inside for further analysis. RHF4T003 field tester is capable in Noise floor scan, Point to point Ping-Pong test and standard LoRaWAN® communicating with Gateway. It is very suitable to be used as a tool for LoRa® network planning and optimization.


Back to list
Get free A quote
Product Description

  • Handheld Portable Device

  • Frequency Band: Support Full Lora Sub-GHz Band.

  • Full Support LoRaWAN® 1.0.2

  • LoRa® RF Power Max 20dBm, Output Power Programmable.

  • LoRa® RX Sensitivity Down To -139dBm @SF12, BW125KHz

  • Power Supply：USB/Rechargeable Lithium-Ion Battery

  • Battery Capacity：1150mAh

  • Battery Continuous Working Time>8Hours.

  • Standby Power Consumption：70mW

  • Temperature：-20~70℃


Application Area

  • Noise Environment Evaluating

  • LoRa®Signal Quality Monitoring

  • LoRa®Gateway Coverage Evaluating

  • LoRa®Gateway Field Installation

  • Noise Floor Scanning

  • LoRa®Ping-Pong Test
