LoRaWAN Indoor gateway

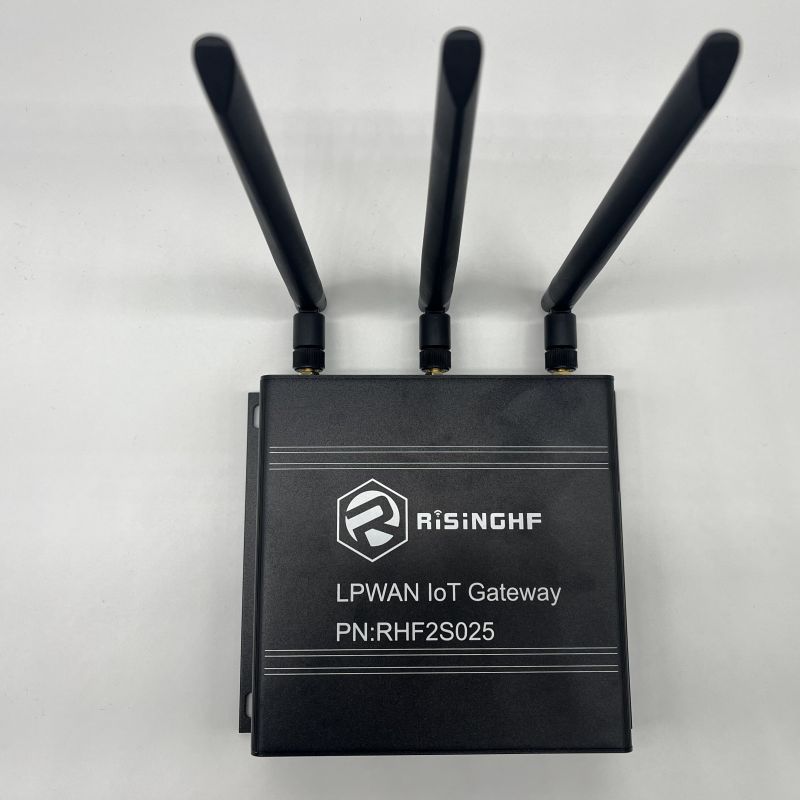

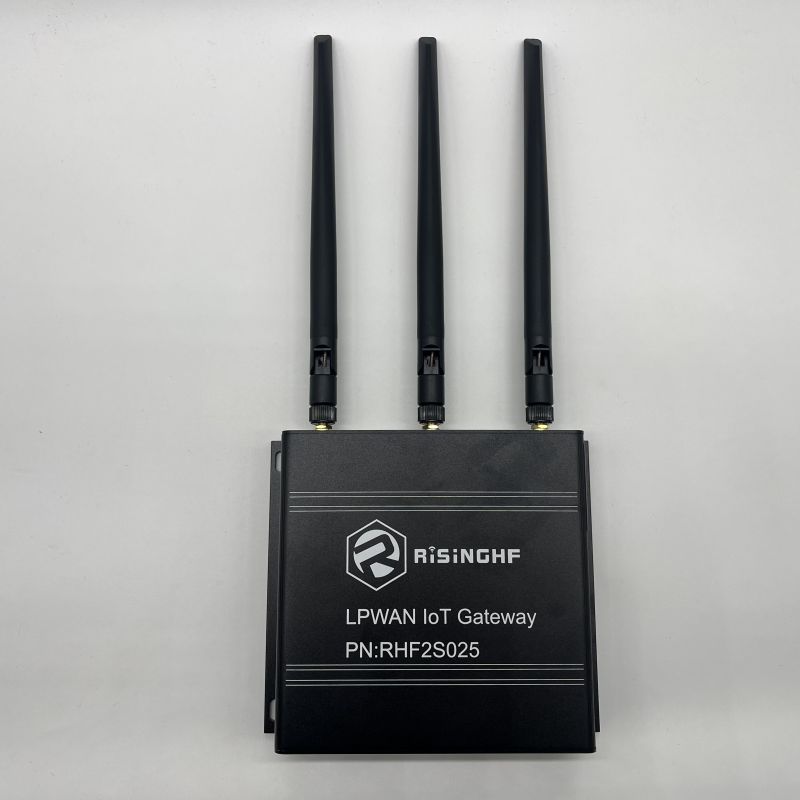

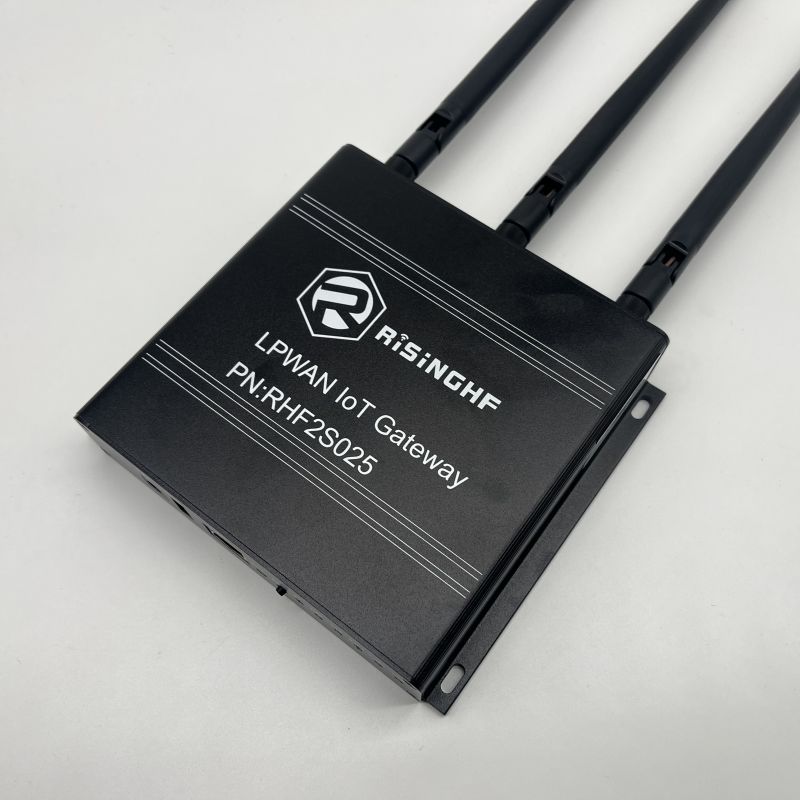

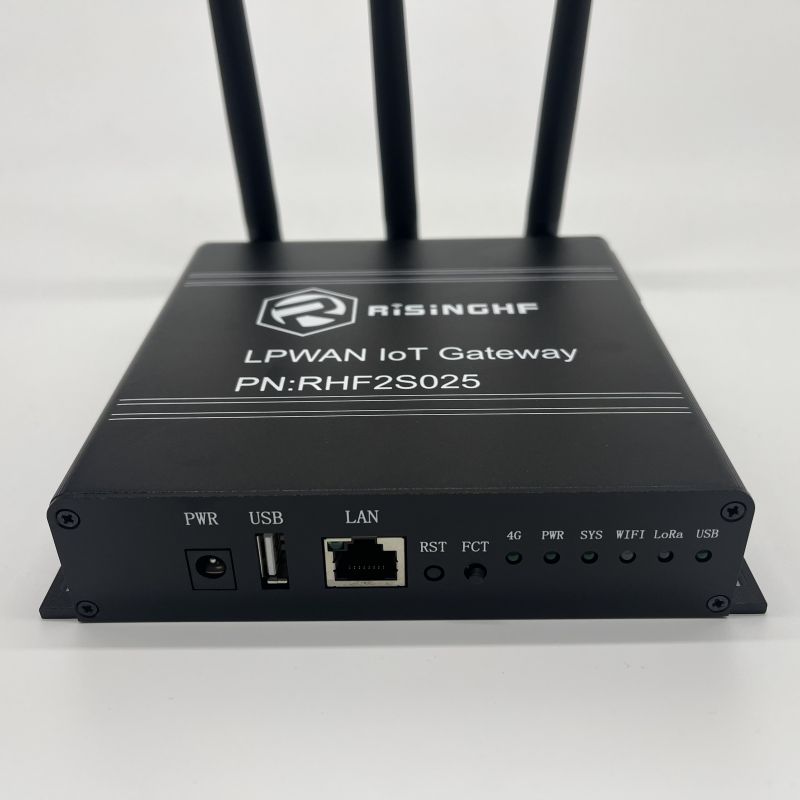

RHF2S025 is an easy installation indoor industrial gateway based on LoRaWAN^® protocol, which is embedded with Semtech's high performance multi-channel transceiver SX1308 and MTK platform. Half duplex and full duplex mode is alternative. The Gateway could connect to LoRaWAN^® Compliant Cloud server via Ethernet network, LTE 4G or Wifi. The Industrial GW include 3 modes: AP,STA and PPPoE as Router. Only one RJ45 port is provided but with WAN/LAN switch automatically. The Industrial GW is targeted to be used in Industry 4.0, smart building, smart Industry, smart manufacture and as a supplement for the industrial outdoor gateway.

Back to list

Get free A quote

Product Description

25dBm Max Output Power
High Sensitivity With -141dBm@300bps
Half Duplex Mode Or Full Duplex Mode Alternative
One Single Antenna To Support Full Duplex LoRaWAN^® Communication
LoRaWAN^® Uplink With 8 Common Multi-Spread Factor Channels And Downlink 1 Common Channel
Support LoRaWAN^® Class A/C
Support Ethernet, LTE4G And WiFi Backhaul Data
WIFI 2.4GHz, Compatible With WLAN 802.11b/G/N
Indoor High Reliability With 3kV Surge Test

Application Area

Smart Industry
Industry 4.0
Smart Manufacture
Industrial Control
Smart Building
Building Automation
