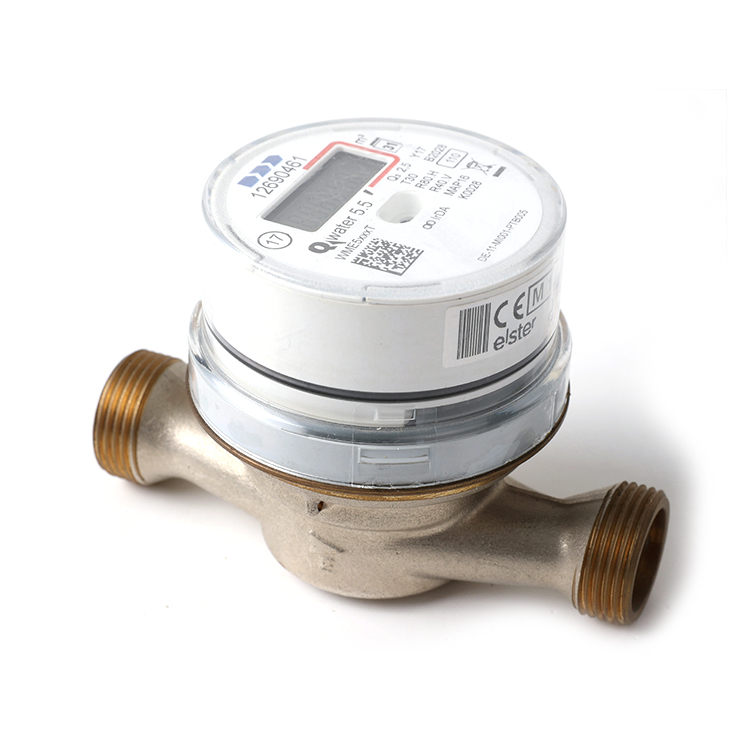

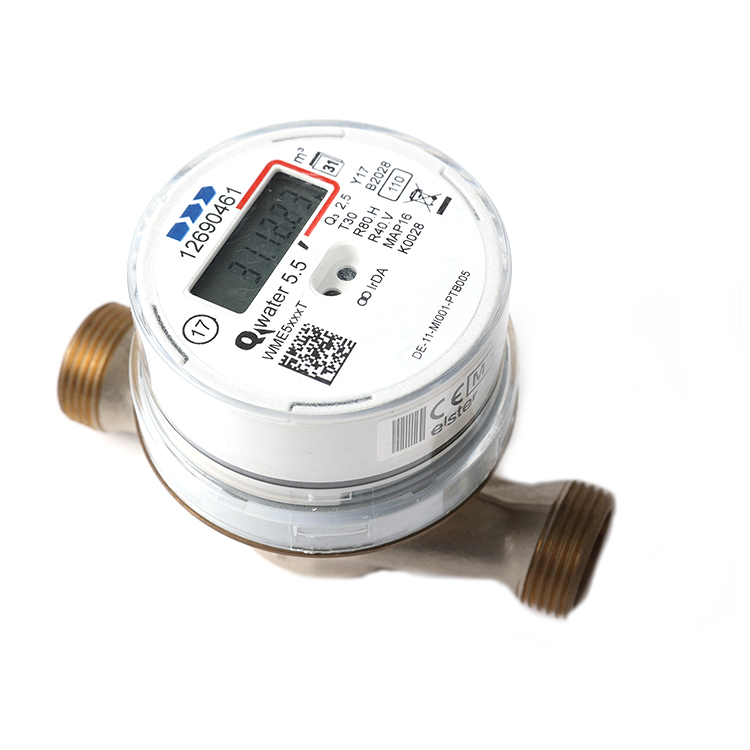

Electronic display dial, easy to read
Built in remote transmission module, no mechanical and electrical errors
Metrology accuracy Class B/Class C
Simple structure, easy to repair.
Insensitive to magnetic fields.
Low starting flow rate
Wireless remote readout viaLPWA-networks (LoRaWANT™,NB-IoT).
Optical interface (IR) or downlink for configuration purposes.
Model |
LXSF-15EV |
LXSF-20EV |
LXSF-25EV | |
Size |
mm |
15 |
20 |
25 |

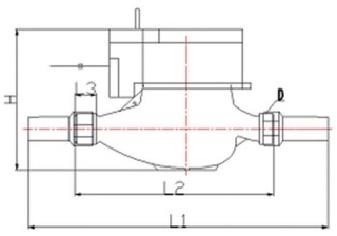

L1 |
mm |
259 |
299 |
345 |
L2 |
mm |
165 |
195 |
225 |
L3 |
mm |
12 |
12 |
12 |
H |
mm |
121 |
121 |
121 |

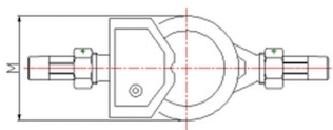

M |
mm |
96 |
96 |
96 |
D |
mm |
3/4" |
1" |
11/4" |
Connection Thread: |
G3/4"B |
G1"B |
G11/4"B | |
Weight |
with unions kg |
1.3 |
1.55 |
1.9 |
without unions kg |
1.12 |
1.35 |
1.5 | |
Model |
LXSG-15EV |
LXSG-20EV |
LXSG-25EV | |||
Nominal diameter (DN)[mm]: |
15 |
20 |
25 | |||
Ratio Q3/Q1: |
R100 |
R160 |
R100 |
R160 |
R100 |
R160 |
Overload flow rate(Q4)[m³/h] |
3.125 |
3.125 |
5 |
5 |
7.875 |
7.875 |
Permanent flow rate (Q3)[m³/h] |
2.5 |
2.5 |
4 |
4 |
6.3 |
6.3 |
Transitional flow rate (Q2)[L/h] |
40 |
25 |
64 |
40 |
126 |
100.8 |
Minimum flow rate (Q1)[L/h] |
25 |
15.6 |
40 |
25 |
78.75 |
63 |
Accuracy class: |
2 | |||||
Temperature class: |
T30 and T50 | |||||
Water pressure classes |
MAP 16 | |||||
Pressure-loss classes: |
△P63 | |||||
Indicating range[m3] |
99999.999 | |||||
Resolution of the indicating device[m3] |
0.001 | |||||
Sensitivity Class: |
Uo DO | |||||
Orientation limitation: |
H ORIZONTAL | |||||
