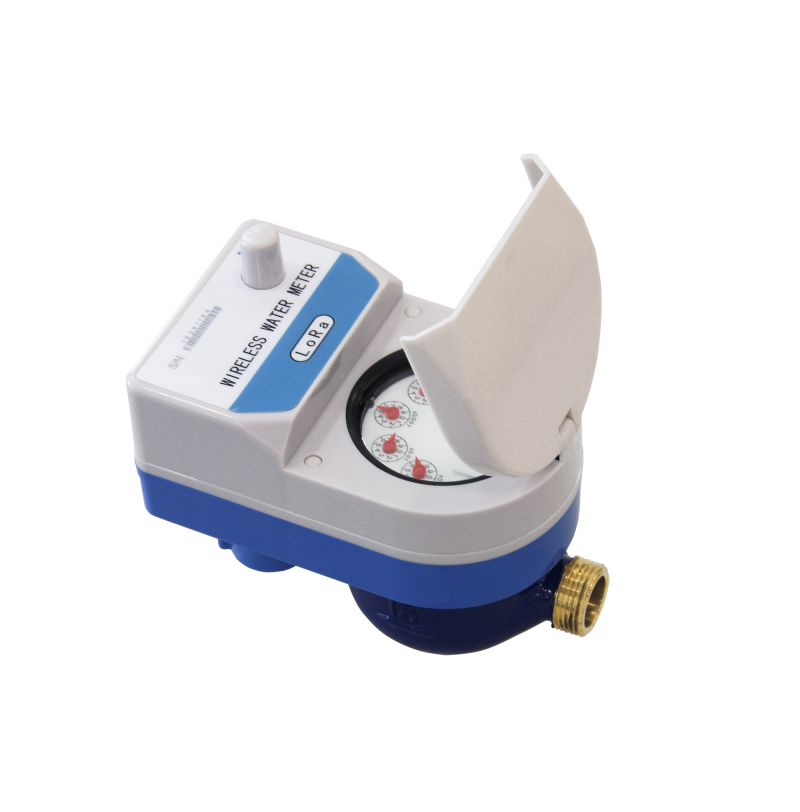

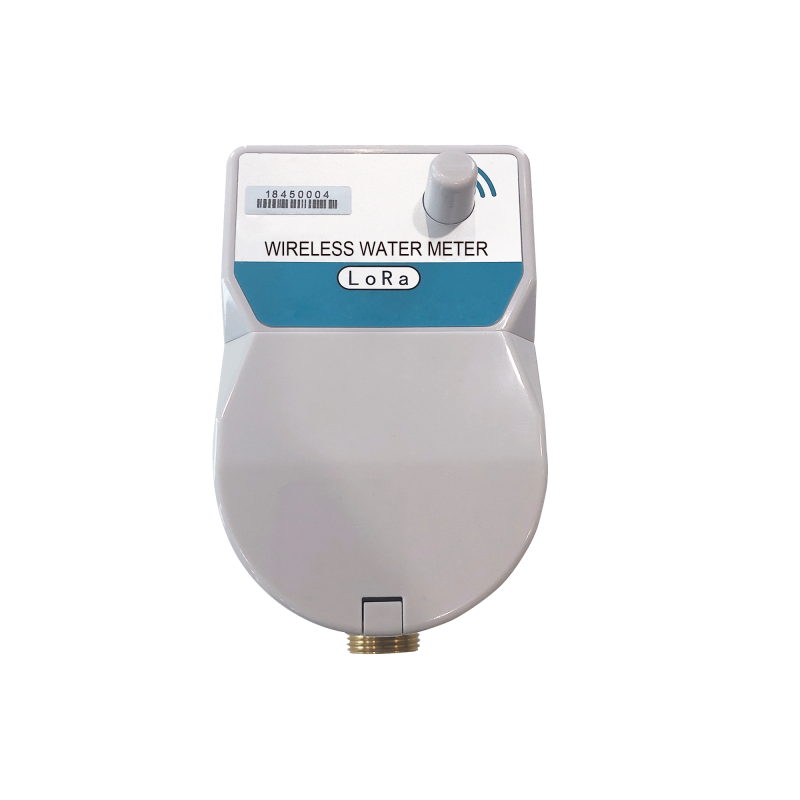

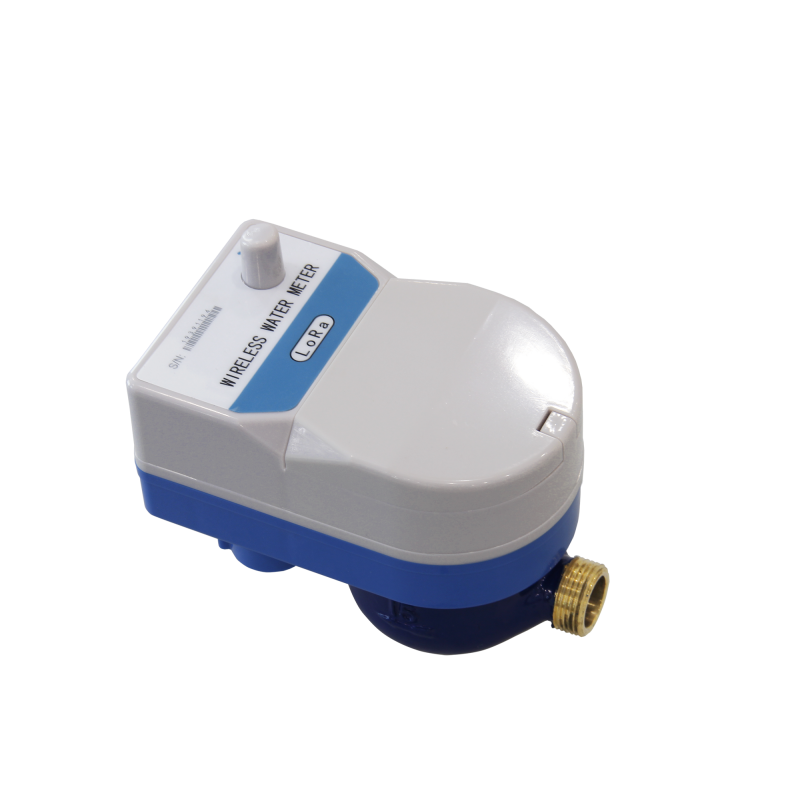

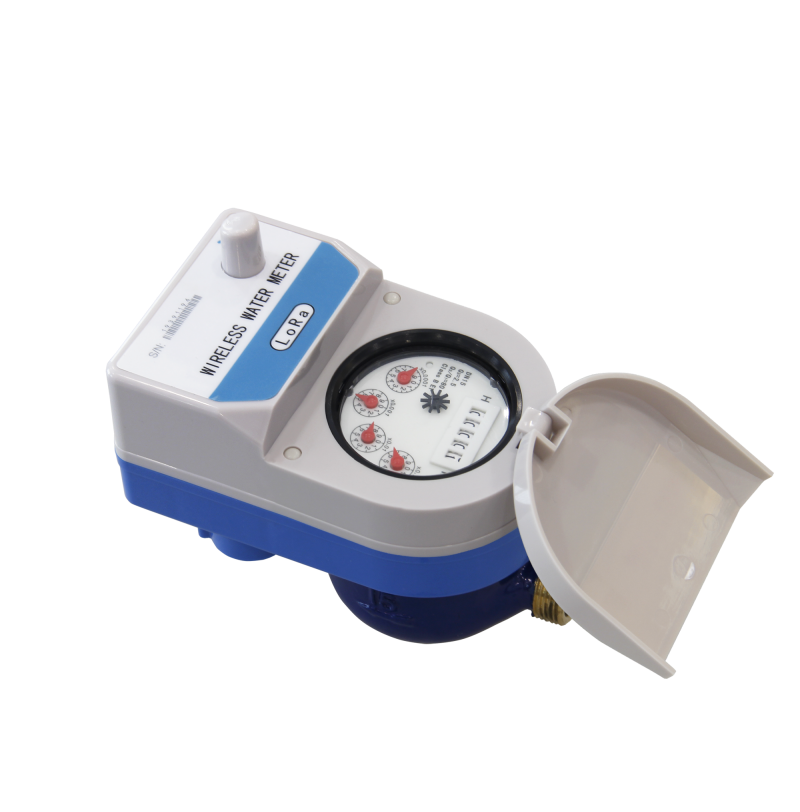

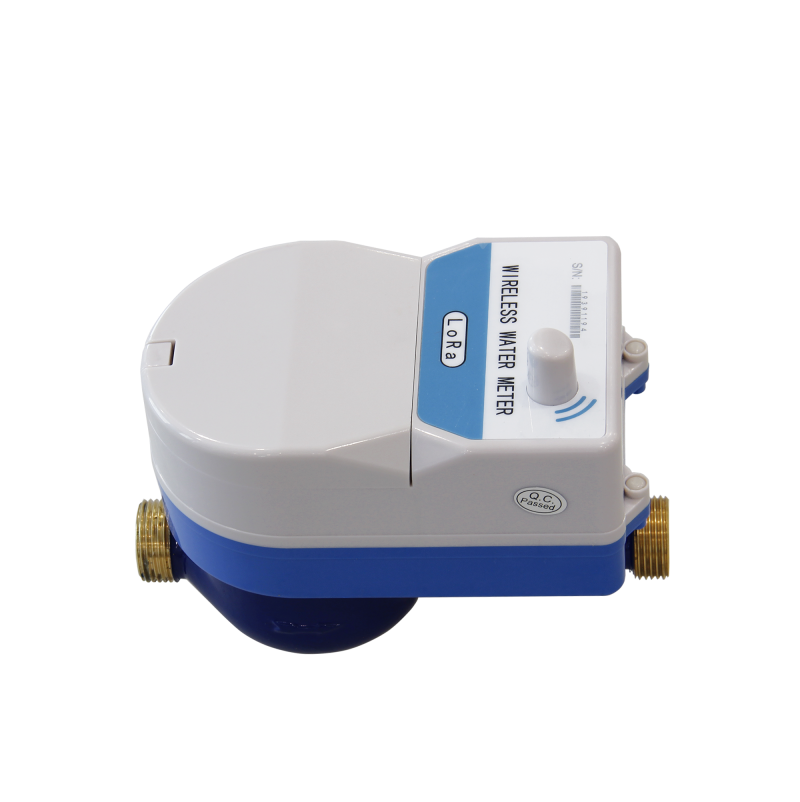

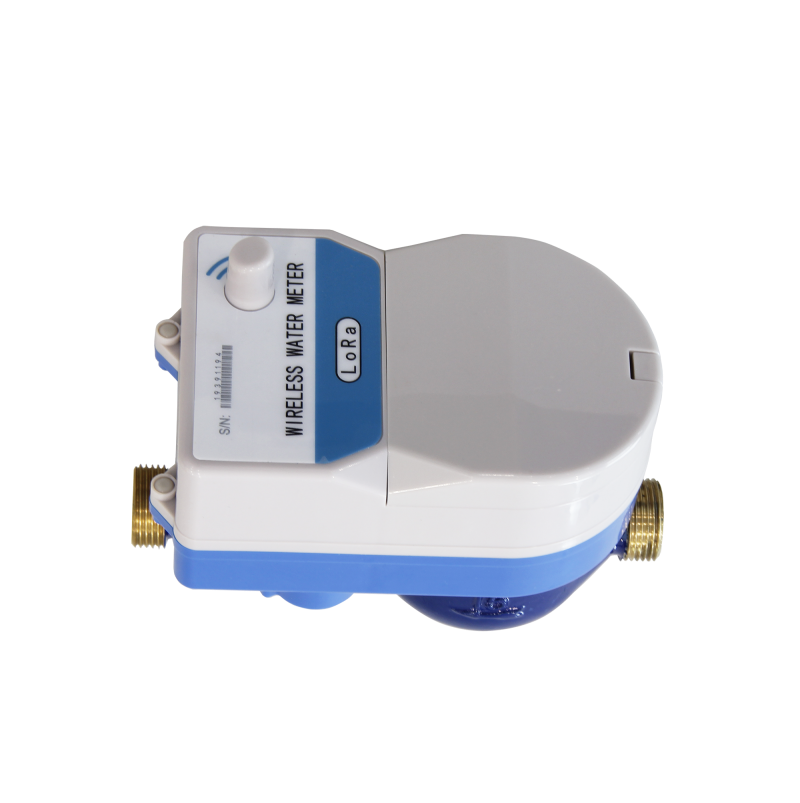

Postpaid water meter &Prepaid water meter
Model |
LXSG-15E5 |
LXSG-20E5 |
LXSG-25E5 | |||
Nominal diameter (DN)[mm]: |
15 |
20 |
25 | |||
Ratio Q3/Q1: |
R80 |
R100 |
R80 |
R100 |
R80 |
R100 |
Overload flow rate(Q4)[m³/h] |
3.125 |
3.125 |
5 |
5 |
7.875 |
7.875 |
Permanent flow rate(Q3)[m³/h] |
2.5 |
2.5 |
4 |
4 |
6.3 |
6.3 |
Transitional flow rate (Q2)[L/h] |
50 |
40 |
80 |
64 |
126 |
100.8 |
Minimum flow rate (Q1)[L/h] |
31.25 |
25 |
50 |
50 |
78.75 |
63 |
Accuracy class: |
2 | |||||
Temperature class: |
T30 and T50 | |||||
Water pressure classes: |
MAP 16 | |||||
Pressure-loss classes: |
△P63 | |||||
Indicating range[m3]: |
99999 | |||||
Resolution of theindicating devicelIm3]: |
0.00005 | |||||
Sensitivity Class: |
UO DO | |||||
Orientation limitation: |
H ORIZONTAL | |||||
FEATURES AND BENEFITS
Dry dial, vacuum sealed to keep cleanreading for long time
Metrology accuracy Class B
Low starting flow rate
Protection Against Magnetic Tampering,automatically close the valve
Wireless remote readout via
LPWA-networks (LoRaWANT™, NB-loT)
Remotely control water meter valves and real-time valve opening and closing.
Accurate metering between the mechanical meter register and the wireless module.
Tamper alarm, Low power alarm detection.
Optical interface(IR),NFC(Android app) or downlink for configuration purposes.

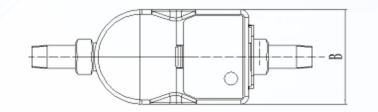

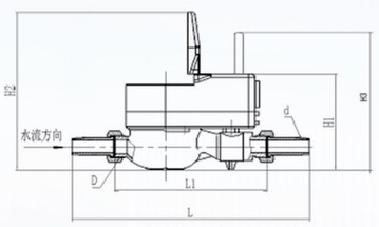

Model |
LXSG-15E |
LXSG-20E |
LXSG-25E | |
Nominal diameter (DN) |
mm |
15 |
20 |
25 |
L |
mm |
258 |
299 |
345 |
L1 |
mm |
165 |
195 |
225 |
H1 |
mm |
120 |
120 |
120 |
H2 |
mm |
200 |
200 |
200 |
H3 |
mm |
165 |
165 |
165 |
B |
mm |
90 90 90 | ||
D |
3/4" 1" 11/4" | |||
Weight (kg) |
With unions |
1 |
1.3 |
2.3 |
wmbon |
0.82 |
1.1 |
1.8 | |
