FEATURES AND BENEFITS
Non sensitive to magnetic fraud
Retrofittable without destroying seals

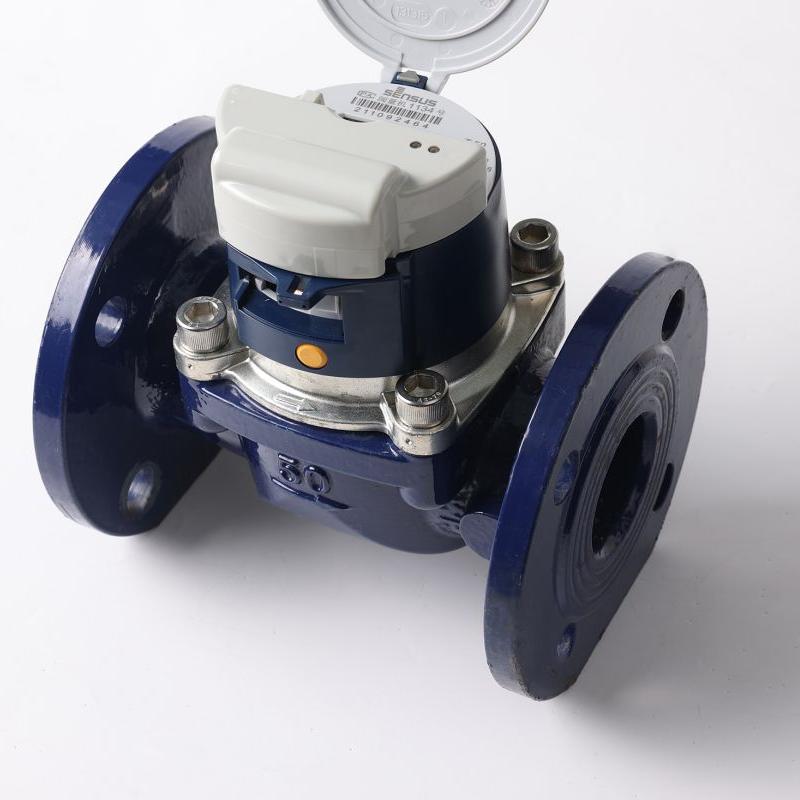

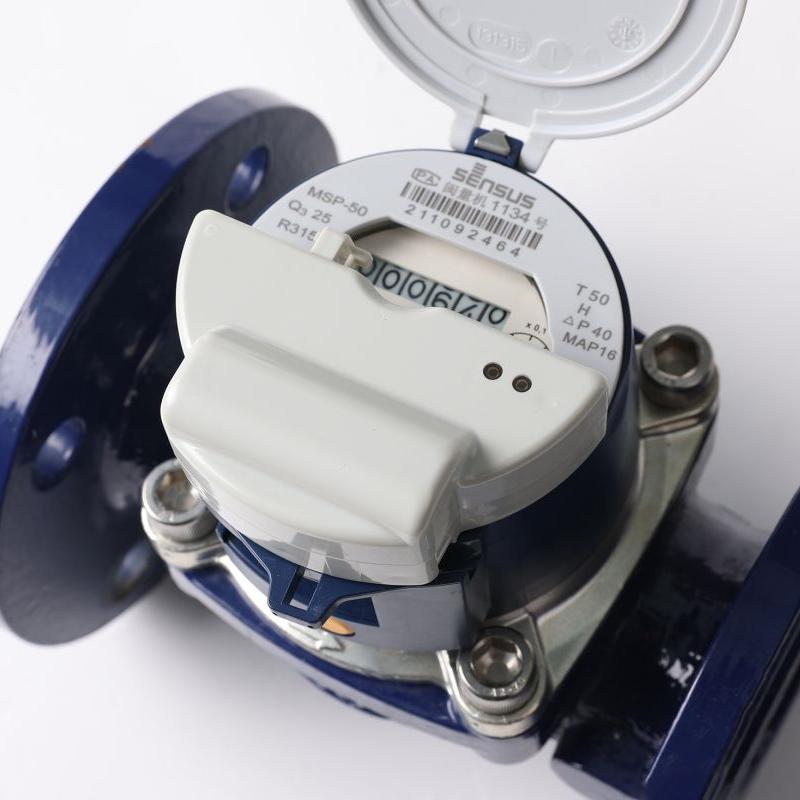

Water meter clip-on module. Easy to connect.
Accurate metering between the mechanical meter register and the pulse module.
Pulse module with forward and reverse detection.
Tamper alarm , Low power alarm detection, Reverse flow alarm(optional), leakage alarm (optional)
Optical interface(IR), NFC(Android app)or downlink for configuration purposes.
TECHNICAL SPECIFICATIONS | |
pimension | 109×50×60mm(LxWxH)200g |
Power supply | 3.6V Lithium battery |
Battery life: | (8500mAH/4000mAH) |
Transmission interval: | Up to 6-10 years +reserve |
Operating temperature | Standard:daily.5-1440mins |
Body material: | -10℃ …+55℃ |
Protection: | Polycarbonate+ABS |
LORAWAN RADIO SPECIFICATIONS | |
LoRaWAN Frequency: | AS923,US915,AU915,EU868,IN865,CN470 |
LoRaWAN Version: | 1.0.2/1.0.3/1.0.4 ClassA |
Activation Mode: | OTAA /ABP |
Tx Power | Up to 20 dBm |
Rx Senitivity: | -137dBm @SF12,BW125kHz |
Communication range: | >1km,up to 10km(Open Space) |
NB-IOT RADIO | |
Frequency Bands: | B1,B3,B5,B8,B20,B28 |
Protocol Stacks: | UDP /LWM2M |
Tx Power: | Up to 23 dBm |
Rx Senitivity: | -129dBm |
communication range: | Based on signal coverage,no distance limitation |
