Product Description
Features and Benefits
Lithium battery ER3461519000 mAh,service life>2years.
Large capacity load,20-50pcs water meters

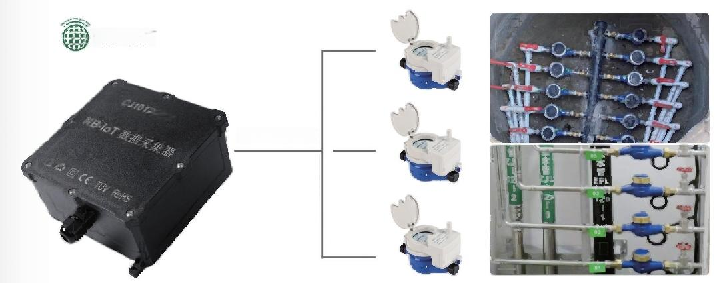

The water meter and collector are connected by bus,RS485 or M-bus.
Retrofittable without destroying water meter wires.
TECHNICAL SPECIFICATIONS
Dimension: |
200×200x100mm(LxWxH)400g |
Power supply: |
3.6V Lithium battery(19000mAh). |
Battery life: |
Up to 2 years+reserve |
Transmission interval: |
Standard:daily.1440mins |
Operating temperature: |
-10℃…+55℃ |
Body material: |
Polycarbonate+ABS |
Protection: |
P67 |
Frequency Bands: |
B1,B3,B5,B8,B20,B28 |
Protocol Stacks |
UDP |
Tx Power: |
Up to 23 dBm |
Rx Senitivity: |
-129dBm |
communication range |
Based on signal coverage,no distance limitation |
