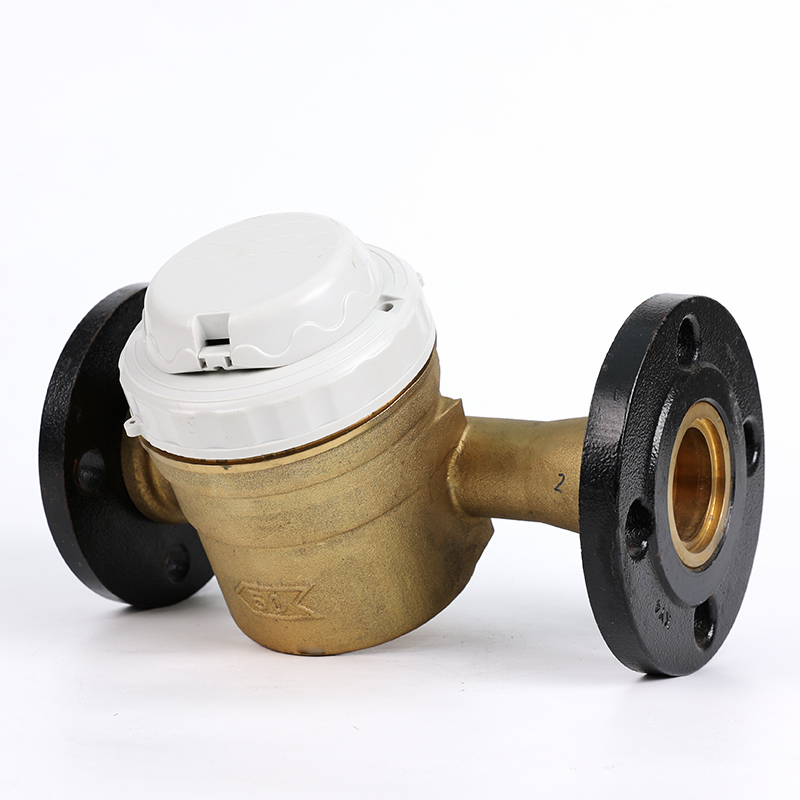

Single jet water meter, Class C.
Accurate measurement.

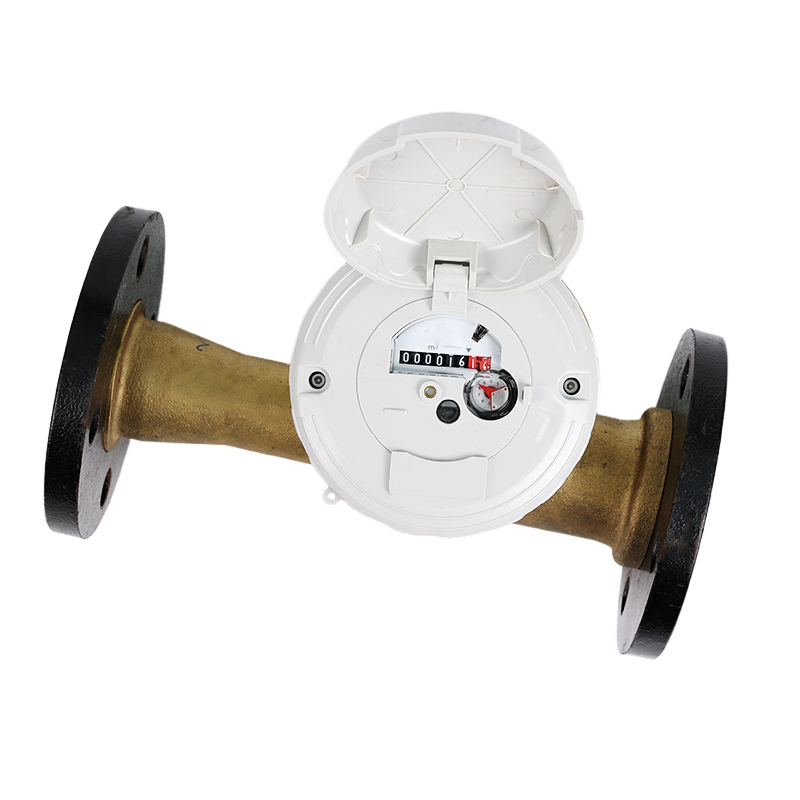

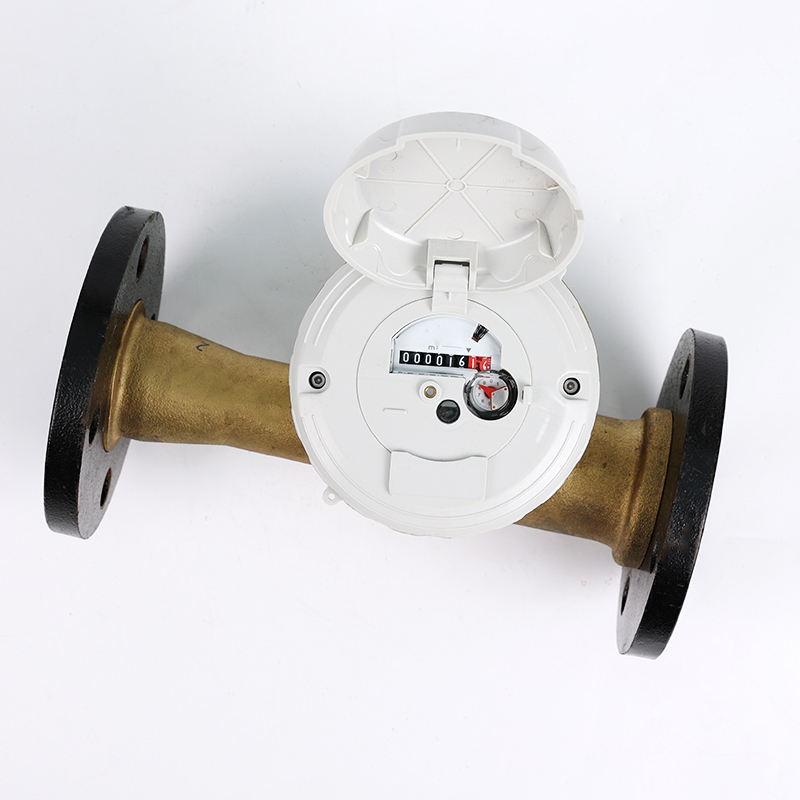

Dry dial,Vacuum sealed to keep clean reading for long time.
360°Rotating dial.
Un-affected by grit and particulates.

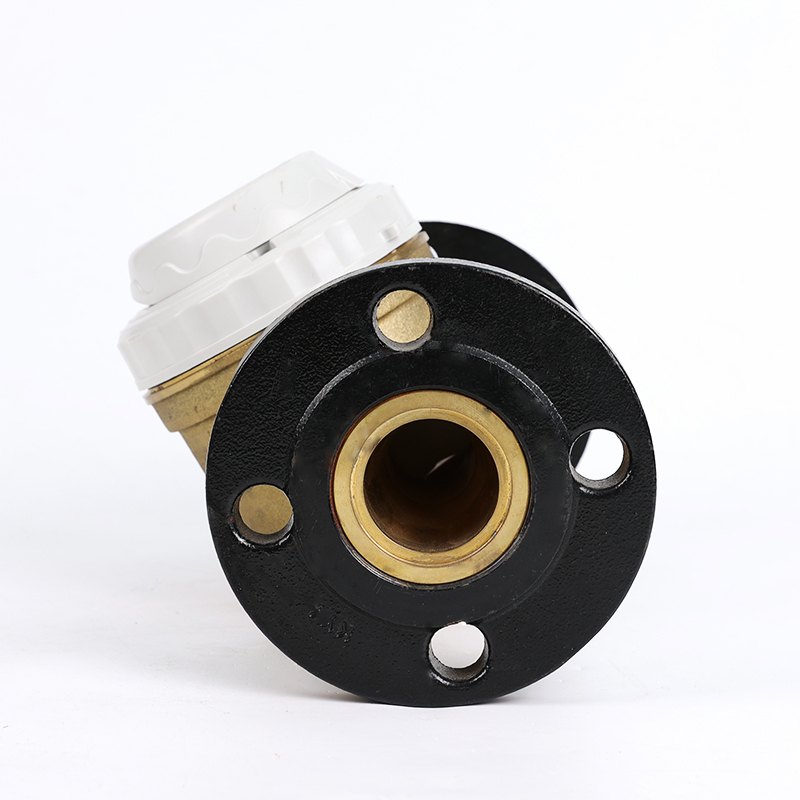

Modular rotating flanges with pipe gaskets.
Insensitive to magnetic fields
Low starting flow rate.
Simple structure and easy maintenance.

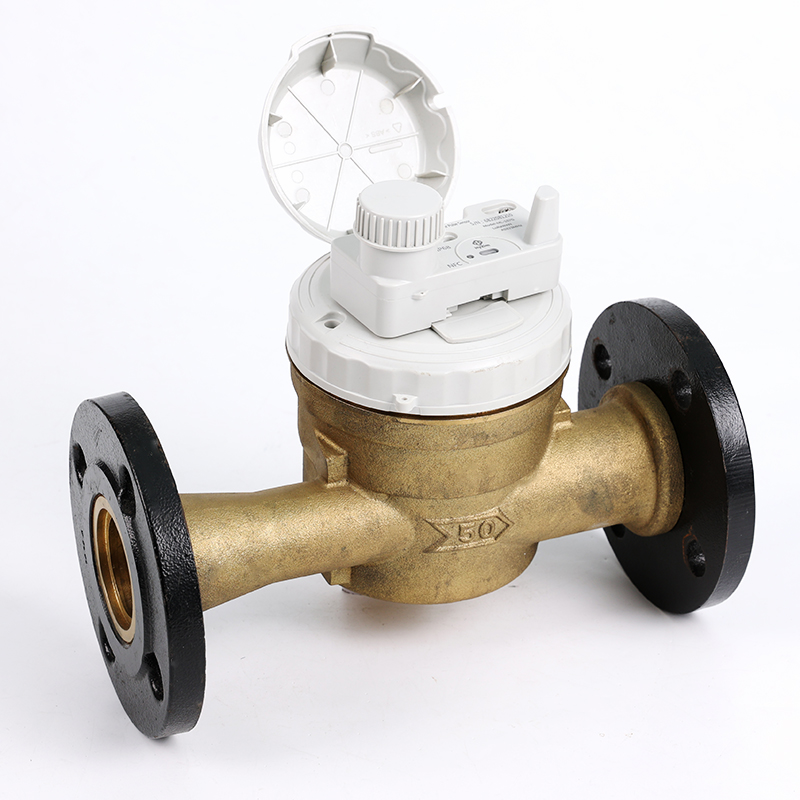

Wireless remote readout via LPWA-networks (LoRaWAN™, NB-IoT)
Technical Specifications
Model | LXSG-50DF | LXSG-65DF | LXSG-80DF | LXSG-100DF | LXSG-150DF |
Nominal diameter (DN)[mm]: | 50 | 65 | 80 | 100 | 150 |
Ratio Q3/Q1: | R250 | R250 | R315 | R315 | R630 |
Overload flow rate (Q4) [m³/h] | 31.25 | 50 | 78 | 125 | 200 |
Permanent flow rate (Q3) [m³/h] | 25 | 40 | 63 | 100 | 160 |
Transitional flow rate (Q2) [L/h] | 160 | 256 | 320 | 507 | 406 |
Minimum flow rate (Q1) [L/h] | 100 | 160 | 200 | 317 | 254 |
Accuracy class: | Class C | ||||
Temperature class: | T30 and T50 | ||||
Water pressure classes: | MAP 16 | ||||
Pressure-loss classes: | △P63 | ||||
Indicating range[m3]: | 999999.99 | ||||
Sensitivity Class: | U0 D0 | ||||
Orientation limitation: | Horizontal | ||||

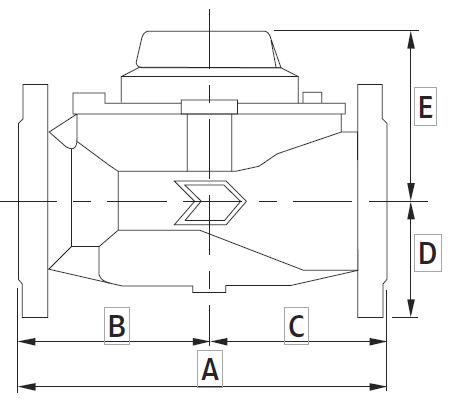

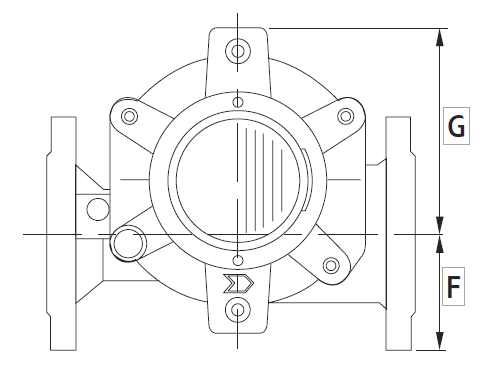

Dimensions
Model | LXSG-50DF | LXSG-65DF | LXSG-80DF | LXSG-100DF | LXSG-150DF | |
Nominal diameter (DN) | mm | 50 | 65 | 80 |
100 |
150 |
A | mm | 300 | 300 | 350 | 350 | 450 |
B | mm | 175 | 180 | 200 | 184 | 240 |
C | mm | 125 | 120 | 150 | 166 | 210 |
D |
mm
| 83 | 92 | 100 |
110 |
144 |
E | mm | 130 | 129 | 135 | 148 | 173 |
F | mm | 83 | 92 | 100 | 110 | 144 |
G | mm | 104 | 118 | 171 | 198 | 236 |
