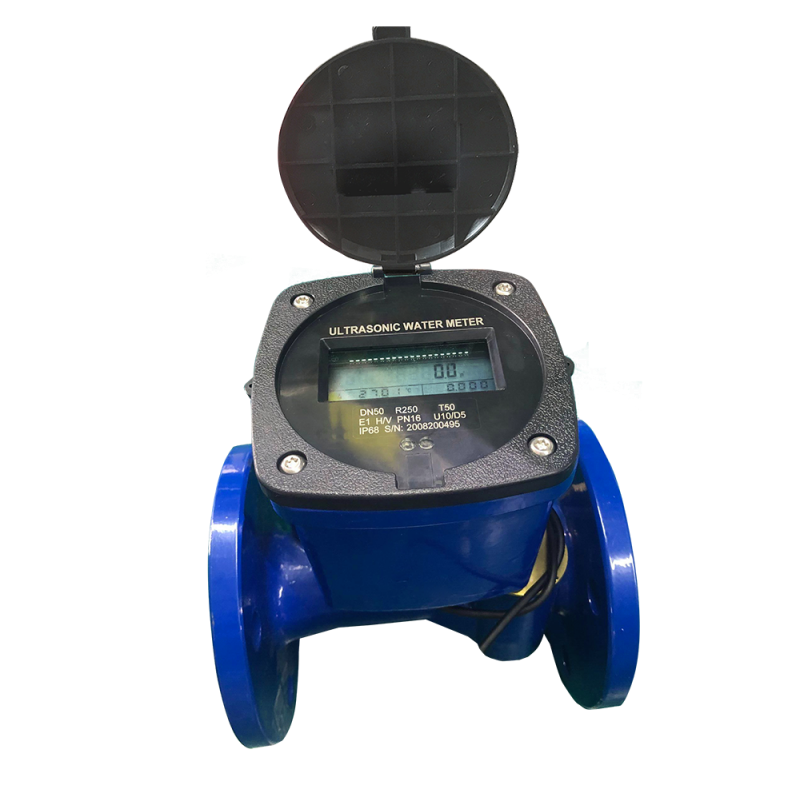

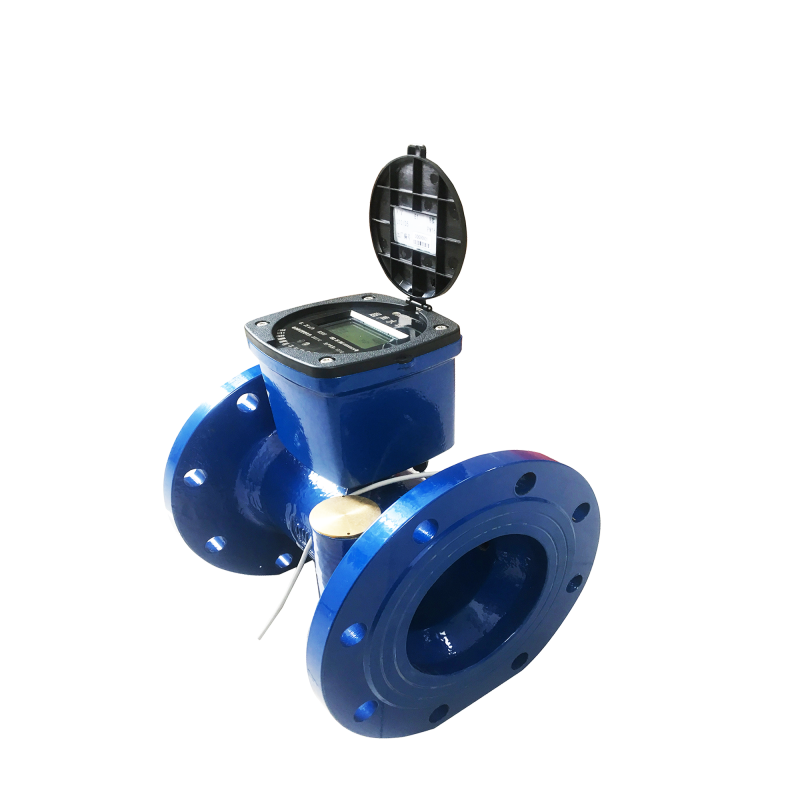

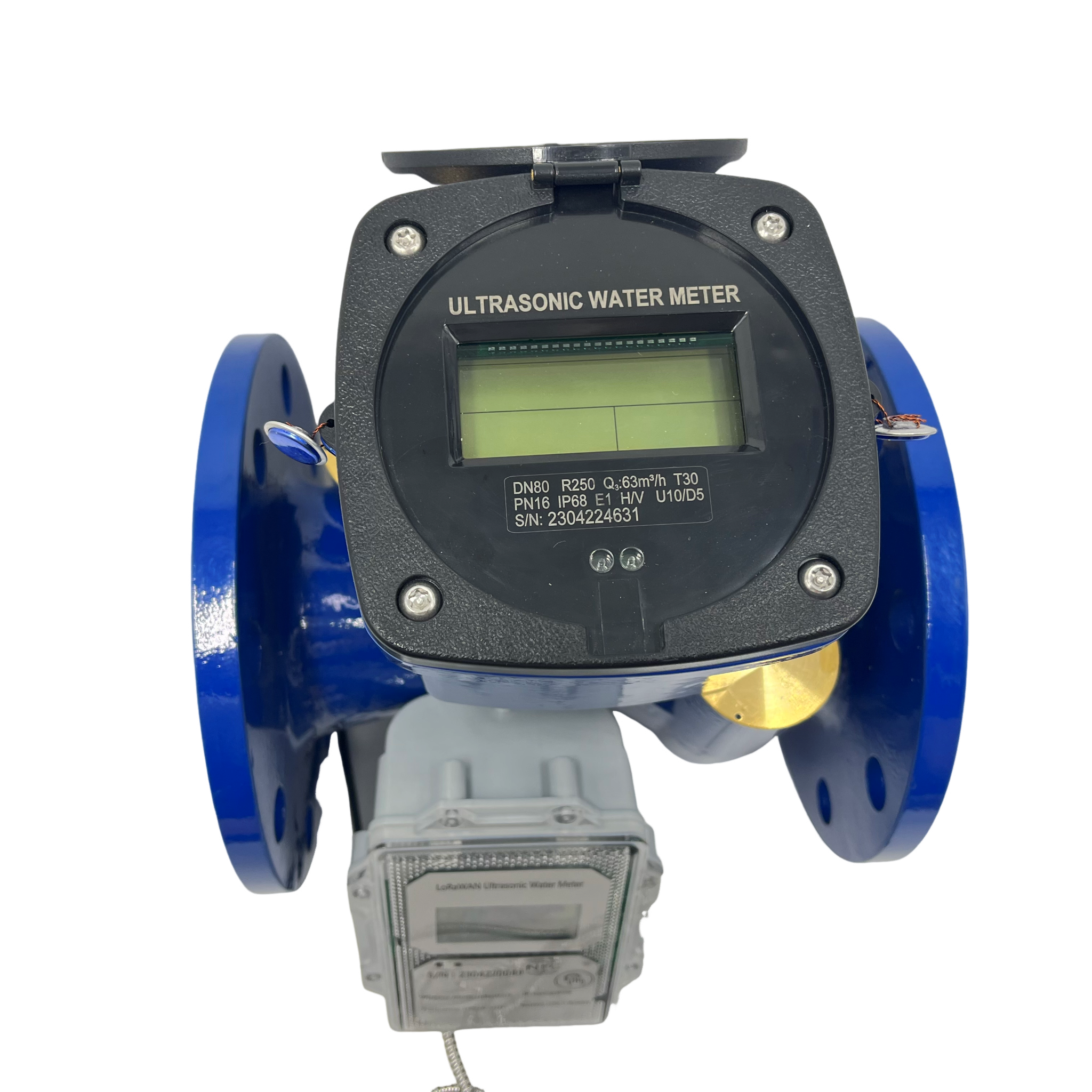

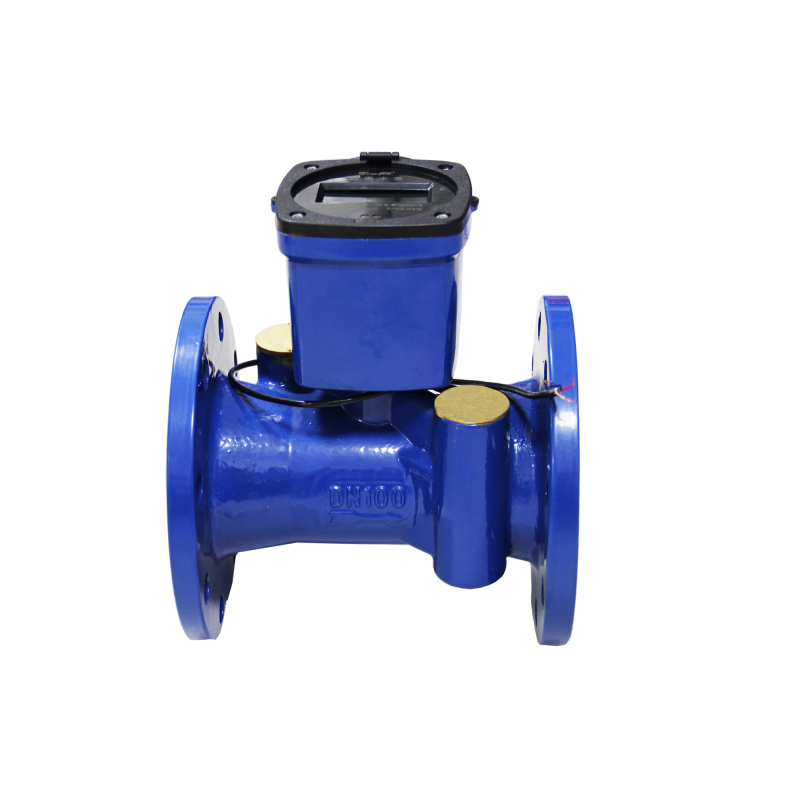

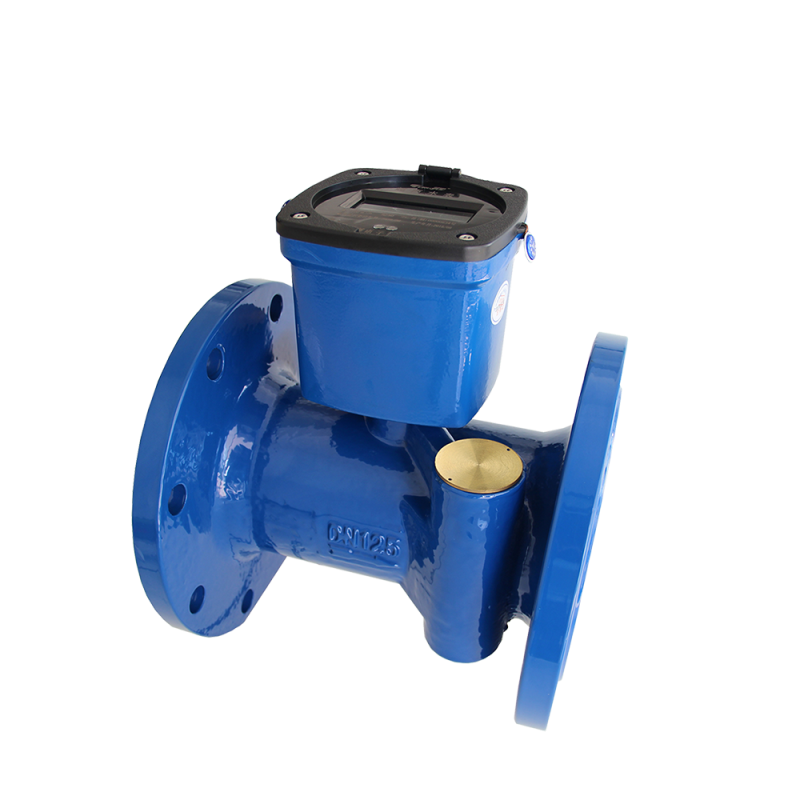

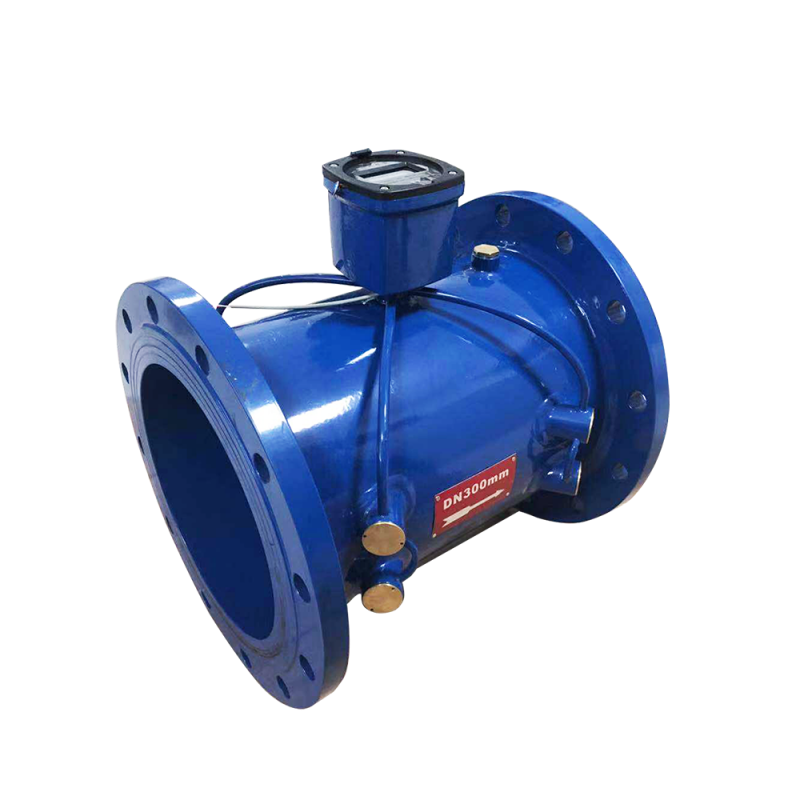

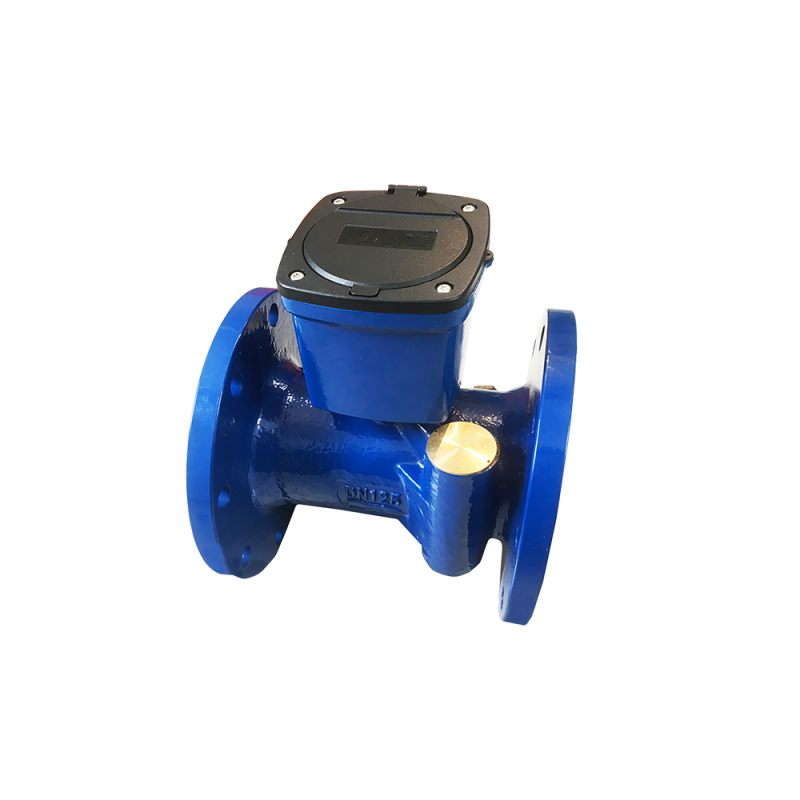

Ultrasonic water meter, Easy to read display
Accurate measurement.
Wide measuring range,R250
water temperature measurement
No metering of air
Any position Installation
Insensitive to magnetic fields
Low starting flow rate.

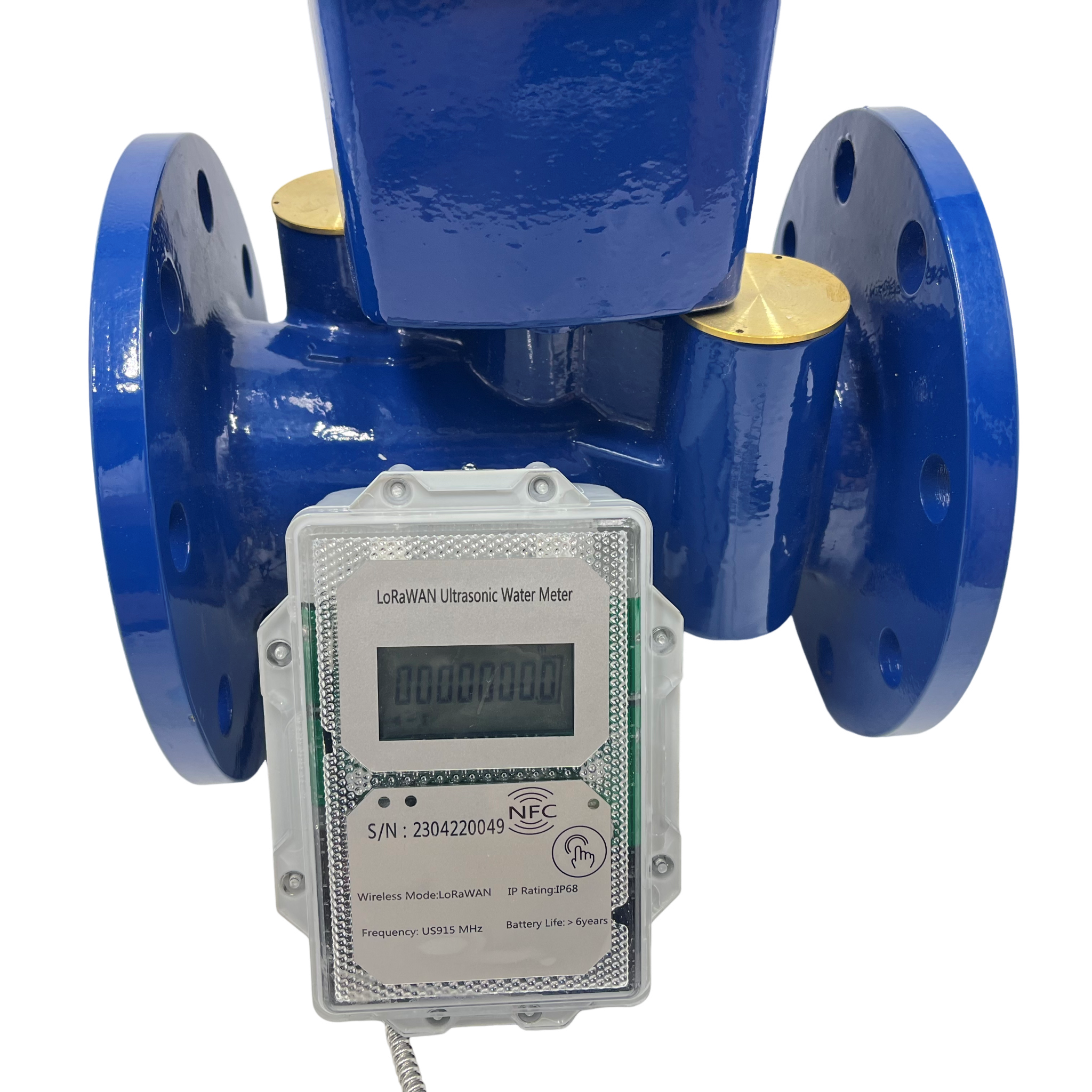

Wireless remote readout viaLPWA-networks (LoRaWANT™, NB-IOT)
Optical interface (IR) for configuration purposes.
Model |
H8-50 |
H8-65 |
H8-80 |
H8-100 |
H8-150 |
H8-200 |
H8-250 |
H8-300 |
Nominal diameter (DN)[mm]: |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
300 |
Ratio Q3/Q1: |
R250 |
R250 |
R250 |
R250 |
R250 |
R250 |
R250 |
R250 |
overload flow rate (Q4)[m³/h] |
31.25 |
50 |
78.75 |
125 |
312.5 |
500 |
787.5 |
1250 |
Permanent flow rate (Q3)[m³/h] |
25 |
40 |
63 |
100 |
250 |
400 |
630 |
1000 |
Transitional flow rate (Q2)[L/h] |
160 |
256 |
400 |
640 |
1600 |
2560 |
4030 |
6400 |
Minimum flow rate (Q1)[L/h] |
100 |
160 |
252 |
400 |
1000 |
1600 |
2520 |
4000 |
Accuracy class |
Class B | |||||||
Temperature class |
T30 and T50 | |||||||
Water pressure classes |
MAP 16 | |||||||
Pressure-loss classes |
△P63 | |||||||
Indicating range[m3] |
9999999.9 | |||||||
Sensitivity Class |
U10 D5 | |||||||
Orientation limitation: |
Any position | |||||||
